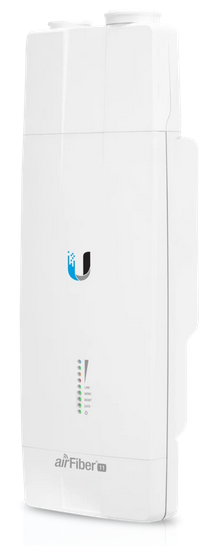

Ubiquiti AirFiber, 11GHz AF-11-EU

Betrieb in Deutschland nicht erlaubt !!!
Not allowed to use in Germany
Only for Export
Dish not included

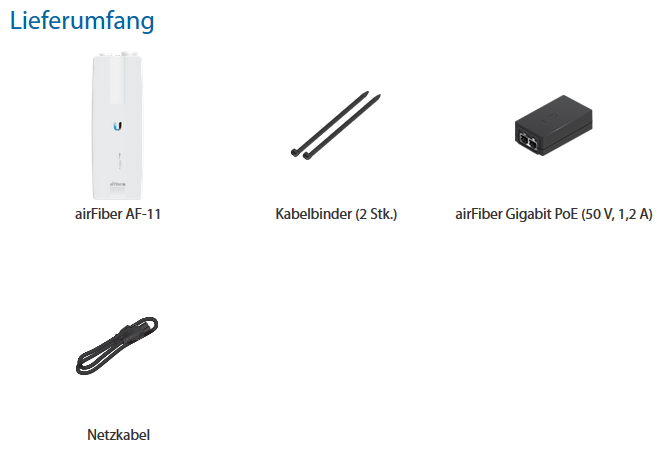

50V, 1.2A PoE Gigabit Adapter (Included)
Breaking free from the congested 5 GHz band, airFiber® 11 is the first modular airFiber radio system purpose-built for the 11 GHz licensed frequency market. Housed in a compact, highly efficient form factor, airFiber 11 delivers amazing wireless gigabit+ performance, low latency, and long range, making it ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.

Features

Full duplex Point-to-Point radio
11 GHz frequency operation
Up to 1.2+ Gbps throughput
Proprietary INVICTUS processor
Integrates with airFiber® 11 GHz antennas
Utilizes distinct Rx and Tx frequencies
Accepts PoE or DC power
Secure 128-bit AES encryption
Dimensions 327 x 112 x 86 mm
(12.87 x 4.41 x 3.39")
Weight 2.26 kg
(5.0 lb)
RF Connectors (4) SMA Weatherproof, Two per Chain:
TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1)
(2) N-Type Waterproof, One per Duplexer
Power Supply 50V, 1.2A PoE Gigabit Adapter (Included)
Power Method Passive Power over Ethernet, DC Power Block
Supported Voltage Range 38-56VDC
Certifications FCC Part 101, ETSI EN 302 217

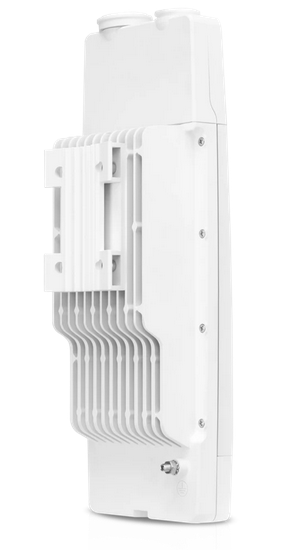

Mounting AF-11G35 Mount Compatible
Operating Temperature -40 to 55° C (-40 to 131° F)
Networking Interface
Data
Management
(1) 10/100/1000 Ethernet Port
(1) 10/100 Ethernet Port
System
Processor INVICTUS 2 IC
Maximum Throughput 1.2+ Gbps
Encryption 128-bit AES
OS airOS F
Wireless Modes SISO/MIMO
Radio
Operating Frequency 10.7-11.7 GHz
(Depends on Regulatory Region*)
Max. Conducted TX Power 30 dBm
(Depends on Regulatory Region*)
Frequency Accuracy ± 1 ppm
Channel Bandwidth 3.5/5/7/10/14/20/ 28/30/40/50/56 MHz Selectable**
Programmable Uplink and Downlink Duty Cycles

* For region-specific details, refer to the Compliance chapter of the airFiber AF-11FX User Guide at ui.com/download/airfiber
** Channel widths may vary according to country/region regulations.
