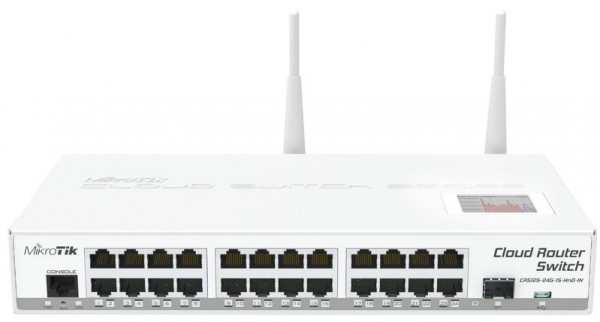

MikroTik Cloud Router Switch CRS125-24G-1S-2HnD-IN, 24x Gigabit, 1x SFP, WiFi

Cloud Router Switch 125-24G-1S-IN with Atheros AR9344 CPU, 128MB RAM, 24xGigabit LAN, 1xSFP, RouterOS L5, LCD panel, 2.4Ghz, 802.11b/g/n wireless, desktop case, PSU

CRS125-24G-1S-2HnD-IN

Cloud Router Switch is our new Smart Switch series. It combines the best features of a fully functional router and a Layer 3 switch, is powered by the familiar RouterOS. All the specific Switch configuration options are available in a special Switch menu, but if you want, ports can be removed from the switch configuration, and used for routing purposes.

What?s more - this device has a built in 2.4GHz wireless access point, this means you can have an AP, a router with any number of ports, and a full wire speed smart switch, all in one device - ideal for medium/small businesses and offices. It has 24 Gigabit ports, one SFP cage, a microUSB port and a built in Wireless AP.

Perfect SOHO gateway router, switch, 11n AP all in one box

Ethernet, Fiber, or 4G (with optional USB modem) gateway connection to Internet

RouterOS gateway/firewall/VPN router with passive cooling

up to twenty-five gigabit switch ports (1xSFP and 24xRJ45)

1000mW high power 2.4GHz 11n wireless AP

Product specifications

Details

Product code CRS125-24G-1S-2HnD-IN

SFP DDMI Yes

CPU nominal frequency 600 MHz

CPU core count 1

Size of RAM 128 MB

Architecture MIPS-BE

10/100 Ethernet ports 0

10/100/1000 Ethernet ports 24

MiniPCI slots 0

MiniPCI-e slots 0

Wireless chip model AR9344-DC3A-R

Wireless standards 802.11b/g/n

Number of USB ports 1

Power Jack 1

Supported input voltage 8 V - 28 V

PoE in Yes

PoE out No

Voltage Monitor Yes

CPU temperature monitor No

PCB temperature monitor Yes

Dimensions 285x145x45mm

Operating System RouterOS

Operating temperature range -35C to +65C

License level 5

Antenna gain DBI 2

Current Monitor No

CPU AR9344-DC3A-R

Max Power consumption 19 W

SFP ports 1

SFP+ ports 0

USB slot type microUSB type AB

Number of chains 2

Serial port RJ45

Suggested price $209.00

Wireless specifications

2.4 GHz

TX

RX

1MBit/s 29 -97

11MBit/s 28 -90

6MBit/s 30 -96

54MBit/s 25 -76

MCS0 30 -96

MCS7 23 -73
