- Artikel-Nr.: 86619
- Hersteller: Aten
- Hersteller Artikel-Nr.: CS52A
- EAN Nummer: 4710423774803
- Gelistet seit: 25.03.2011
*Auftragsbezogen, nicht Stornierbar*, incl. Kabel fest zum PC 0,6/1,2m , 2048x1536,

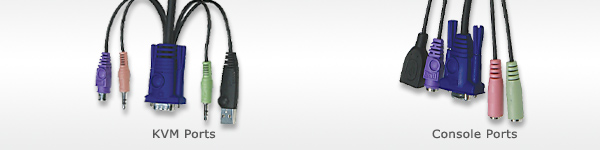

Console: 1xUSB Buchse Typ A, 1x PS2 Buchse, 1xVGA HDB-15 Buchse, 2x Audio Buchse
PC1-2: je( 1xHDB-15 Stecker, 1x USB Stecker, 1xPS2 Stecker, 2x Audio Stecker)
+ Download :
360° View
2-Port USB KVMP Switch
CS1732A 2 Port KVM Switch has built-in USB on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease.
Patent NO. : TW 203183 (Taiwan) ,US 6957287 (USA) ,TW I220489 (Taiwan) ,CN ZL 01260527.1 (China) ,TW 081926 (Taiwan) ,CN ZL 02301203.X (China) ,TW I220476 (Taiwan) ,DE 202004004227.4 (German) ,US 7047344 (USA) ,US 6464197 (USA)
Features
One USB console controls 2 computers and two additional USB devices
2 port USB Hub built in
Dual interface supports computers with PS/2 or USB keyboards and mice
Multiplatform support: compatible with all operation platforms PC (Windows, Linux and most others), Mac and Sun
With speaker and microphone support
Bi-directional switching and flexible interoperability; switch permits independent PC, independent peripheral, and independent audio function, regardless of KVM switch focus
Auto PS/2 and USB interface detection
Buzzer On/Off via hotkey
Keyboard and mouse emulation for error free booting
Computer selection via front panel pushbuttons and hotkeys
Superior video quality - up to 2048 x 1536; DDC2B
Firmware upgradable
OS Support:Windows 2000, Windows XP, Windows Vista, LINUX, Mac, Sun and FreeBSD
SUN/Mac keyboard support and emulation*
*1.PC keyboard combinations emulate SUN/Mac keyboards.
*2.SUN/Mac keyboards only work with their own computers
Package Content
1x USB KVMP Switch
2x USB KVM Cables
1x Firmware Upgrade Cable
1x User Manual
1x Quick Start Guide
Diagram
+ View enlargement
Specification
Computer Connections 2
Port Selection Hotkeys, Pushbutton
USB Port/Audio Port Selection Hotkey
Connectors Console Ports Keyboard 1 x USB Type A Female (White)
Video 1 x HDB-15 Female (Black)
Mouse 1 x USB Type A Female (White)
Speaker 1 x Mini Stereo Jack Female(Green)
Microphone 1 x Mini Stereo Jack Female (Pink)
KVM Ports Keyboard/Video/Mouse 2 x SPHD-15 Female (Yellow)
Speaker 2 x Mini Stereo Jack Female (Green)
Microphone 2 x Mini Stereo Jack Female (Pink)
USB Hub 2 x USB Type A Female (Black)
F/W Upgrade 1 x RJ11 Female (Black)
Power 1 x DC Jack
Switches Port 2 x Pushbutton
F/W Upgrade 1 x Slide
LEDs On Line/ Selected 2 (Orange)
USB Link 2 (Green)
Emulation Keyboard/Mouse USB
Video 2048 x1536; DDC2B
Scan Interval 1~99 seconds
Power Consumption DC5V, 1.2W
Environment Operating Temp. 0~50°C
Storage Temp. -20~60°C
Humidity 0~80% RH, Non-densing
Physical Properties Housing Metal
Weight 0.49 kg
Dimensions ( L x W x H ) 14.00 x 8.50 x 5.50 cm
