- Artikel-Nr.: 67870
- Hersteller: Aten
- Hersteller Artikel-Nr.: VS164
- Gelistet seit: 26.02.2008
* Auftragsbezogene Bestellung *
Eingang: 1xDVI Buchse, 1xMIni Stereo Jack Buchse
Ausgang: 4xDVI Buchse, 4xMIni Stereo Jack Buchse
1920x1200 60Hz, max.65mtr., Spannungsversorgung DC5.3V,4.8W (Max.)
4-Port Video Splitter

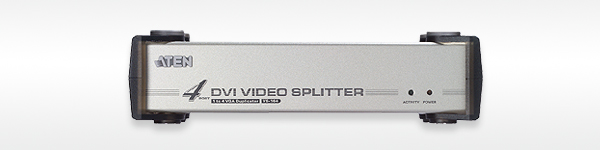

4-Port DVI Video Splitter
VS164 KVM Splitter provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. They are ideal for any type of broadcasting environment, classrooms, or by power computer users.
Features
Connects computers with DVI graphics to multiple DVI compatible monitors or projectors.
Fully compliant with DVI-Digital and DVI-Analog.
Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors.
Speaker enabled for audio enjoyment.
Cascadable to 3 levels - provides up to 64 video signals.
Installs in minutes.
Maintains highest single link video resolution (up to 1920 x 1200).
DDC, DDC2, DDC2B Compatible (Port 1 only).
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Package Content
1x 4-Port DVI Video Splitter
1x Power Adapter
1x User Manual
Diagram
+ View enlargement
Specification

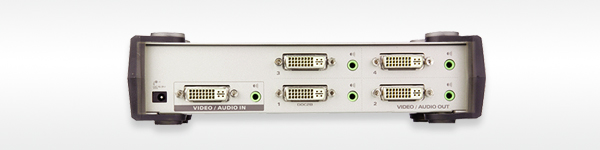

Computer Connections 4
Connectors Video In 1 x DVI Female (White)
Audio In 1 x Mini Stereo Jack Female (Green)
Video Out 4 x DVI Female (White)
Audio Out 4 x Mini Stereo Jack Female (Green)
Power 1 x DC Jack (Black)
LEDs Online 1 (Orange)
Selected 1 (Green)
Resolution 1920 x 1200 @60 Hz
Signal Range
Up to 5m (15’)
Power Consumption DC5.3V,4.8W (Max.)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties Housing Metal
Weight 0.72 kg
Dimensions ( L x W x H ) 21.00 x 8.70 x 5.50 cm
VS134 video splitters provides video input signal to 4 video outputs each at 350 MHz after duplication. Users can boost video signals from the video gain knob within a transfer range up to 65m
Features
One video input to 4 video outputs.
Cascadable to 3 levels-provides up to 64 video signals.
Supports up to 350 MHz bandwidth.
Long distance transmission - up to 65m (210’).
High video resolution - 1920 x 1440.
DDC, DDC2, DDC2B Compatible (Port 1 only).
Supports VGA, XGA, SVGA, UXGA and multisync monitors.
OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
Package Content
1x 4-Port Video Splitter
1x Power Adapter
1x User Manual
Diagram
+ View enlargement
Specification
Display Connections 4
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 4 x HDB-15 Female (Blue)
Power 1 x AC Jack (Black)
Switches Video Gain 1 x Knob
LEDs Power 1
Video Bandwidth 350 MHz
Video 1920 x 1440 @ 75Hz
Signal Range Up to 65m (210’)
Power Consumption AC9V, 1.8W (Max.)
Environment Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Plastic / Metal
Weight 1.20 kg
Dimensions (L x W x H) 22.40 x 15.20 x 5.20 cm
