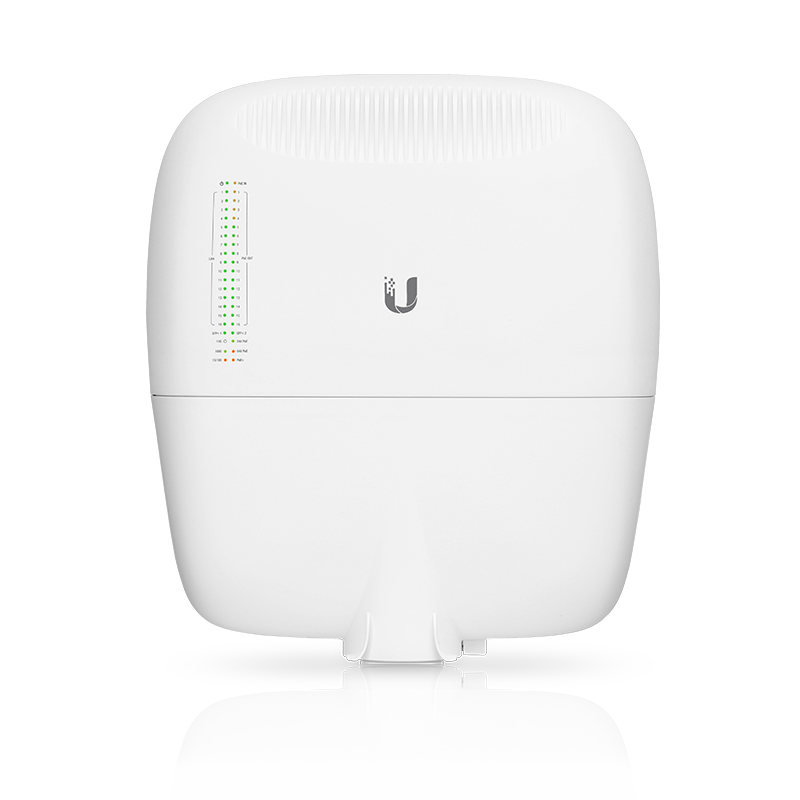

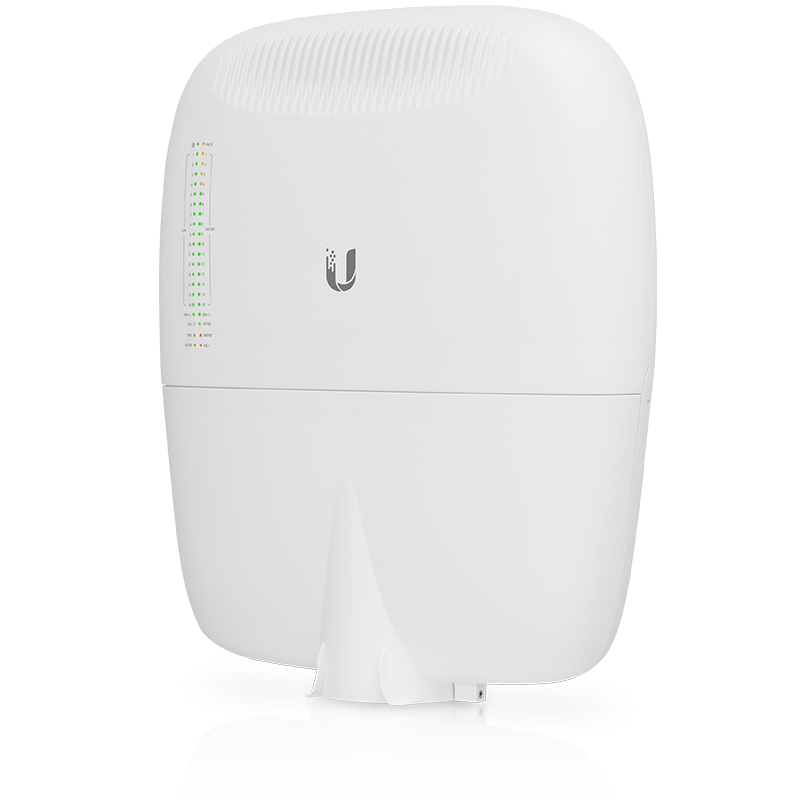

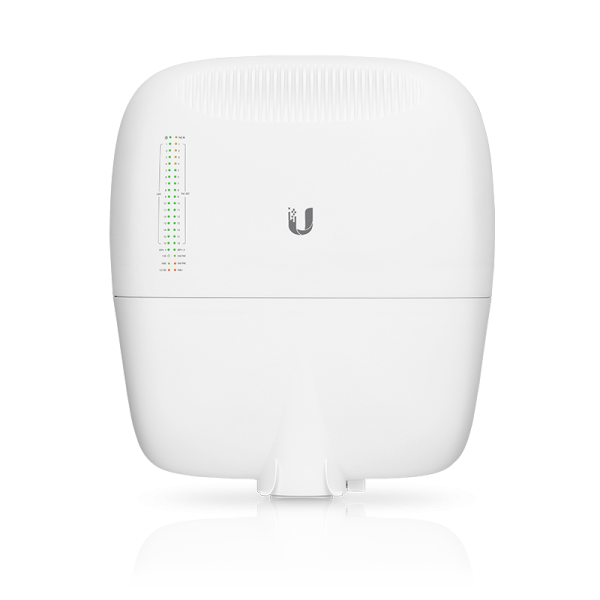

Ubiquiti EdgePoint WISP Control Point with FiberProtect™, EP-S16

Dimensions
With Wall-Mount
326.6 x 382.7 x 88.8 mm (12.86 x 15.07 x 3.50")
326.6 x 382.7 x 105.5 mm (12.86 x 15.07 x 4.15")
Weight
With Wall-Mount
3.4 kg (7.50 lb)
3.8 kg (8.38 lb)
Max. Power Consumption 40W (Excludes PoE Output)
Power Input (1) DC Terminal Block
or
(2) RJ45 (Ports 1 and 2)
(Self-Correcting Polarity Protection on DC Terminal Block Only,
Diode ORed Protection on All Power Inputs)
Power Supply Min. 54V / 0.8A (Excludes PoE Output Power)
VDC Input 54VDC, 6A
Passive PoE Input (2) 54V/1.5A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 and 2
(Do NOT Configure Port 1 or 2 in PoE Output Mode
if You Are Using PoE Input Power Sources.)
Passive PoE Output (4) 54V or 24V /1.4A, 4-Pair (+1, 2, 4, 5; -3, 6, 7, 8) Passive PoE, Ports 1 to 4
(12) 802.3af/at or 24V/0.7A, 2-Pair (+4, 5; -7, 8) Passive PoE, Ports 5 to 16
Power Monitoring (1) DC Terminal Block, Input Power
(2) RJ45, Ports 1 and 2, PoE Input or Output Power
(14) RJ45, Ports 3 to 16, PoE Output Power
Supported Voltage Range 56 to 42VDC
Button Reset
LEDs
System
1 to 16
SFP
Power
Speed/Link/Activity, PoE
Speed/Link/Activity

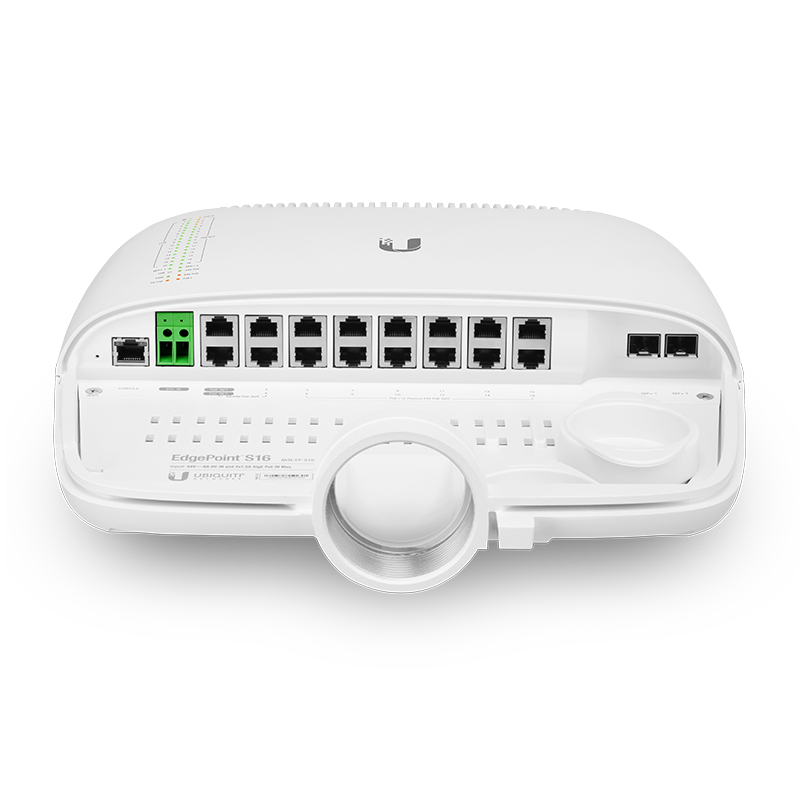

Ports
Serial Console Port
Data Ports
(1) RJ45 Serial Port
(16) 10/100/1000 RJ45 Ports
(2) 1/10 Gbps SFP+ Ports
Processor ARM Cortex-A9 400 MHz
System Memory 256 MB DDR3 RAM
Code Storage 32 MB
Certifications CE, FCC, IC

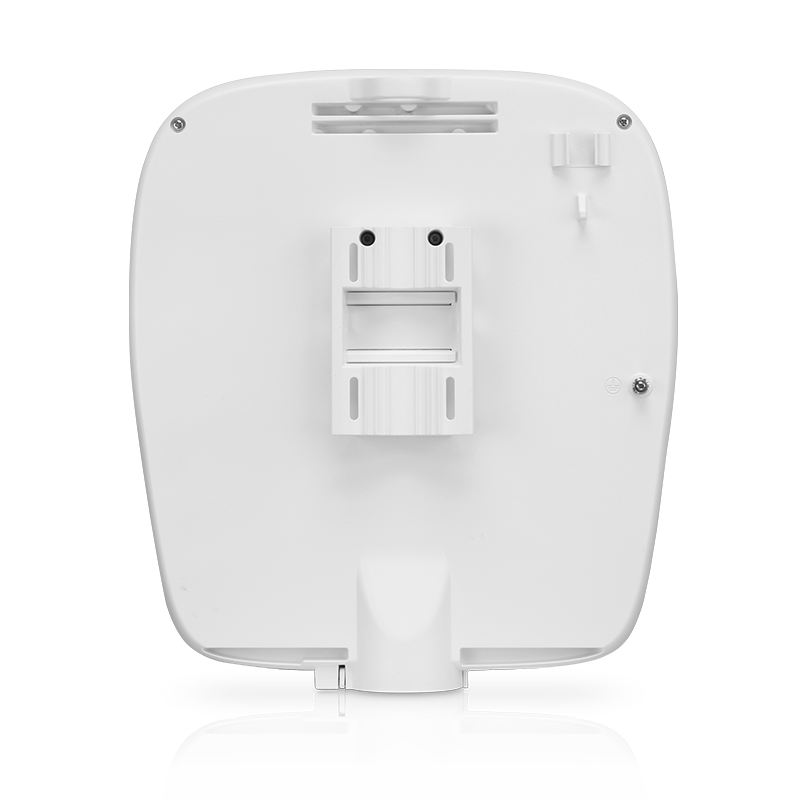

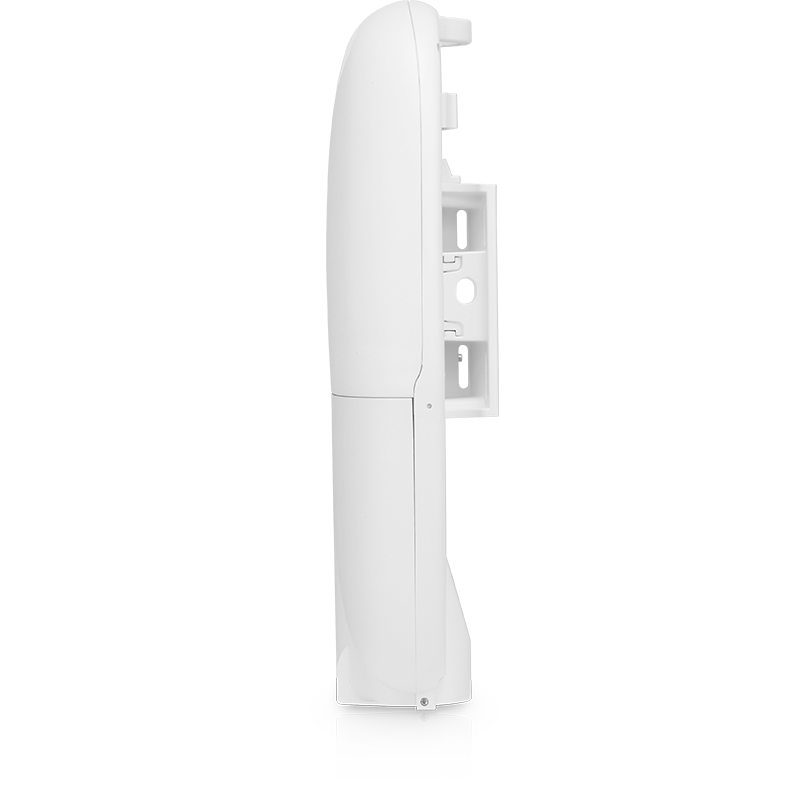

Pole/Wall Mount Yes
Operating Temperature -20 to 65° C (-4 to 149° F)
Operating Humidity 10 to 90% Noncondensing
