Items

Specifications

Model No.

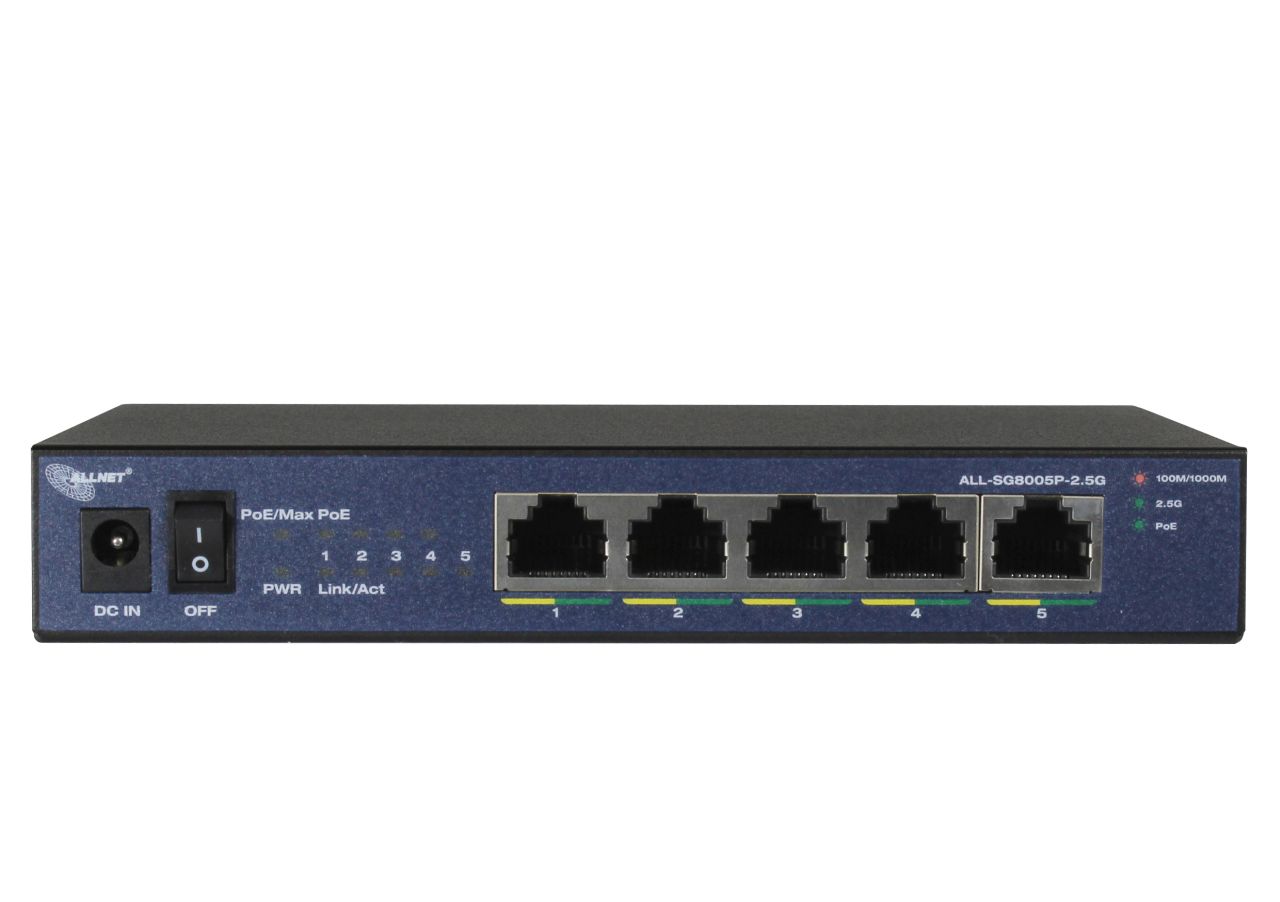

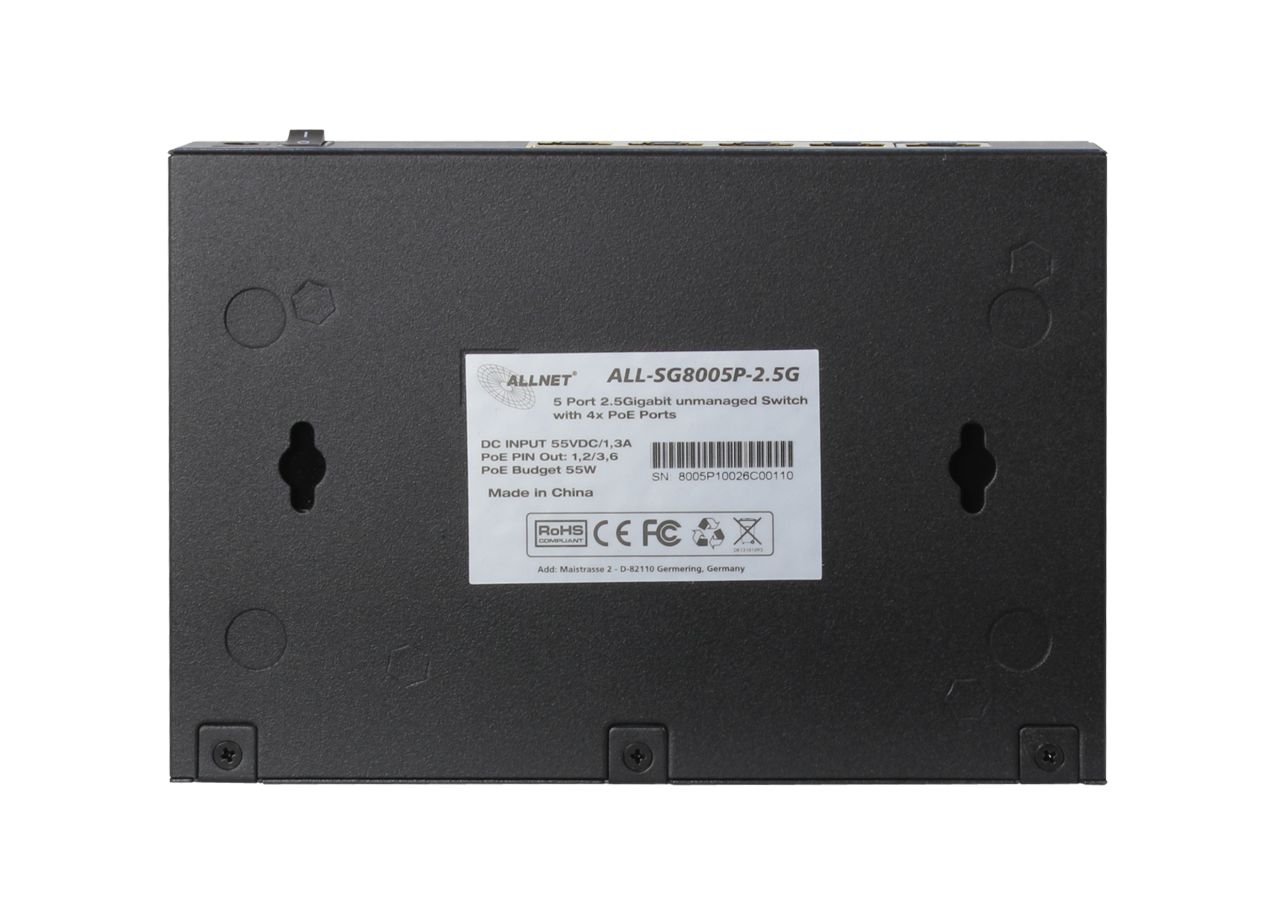

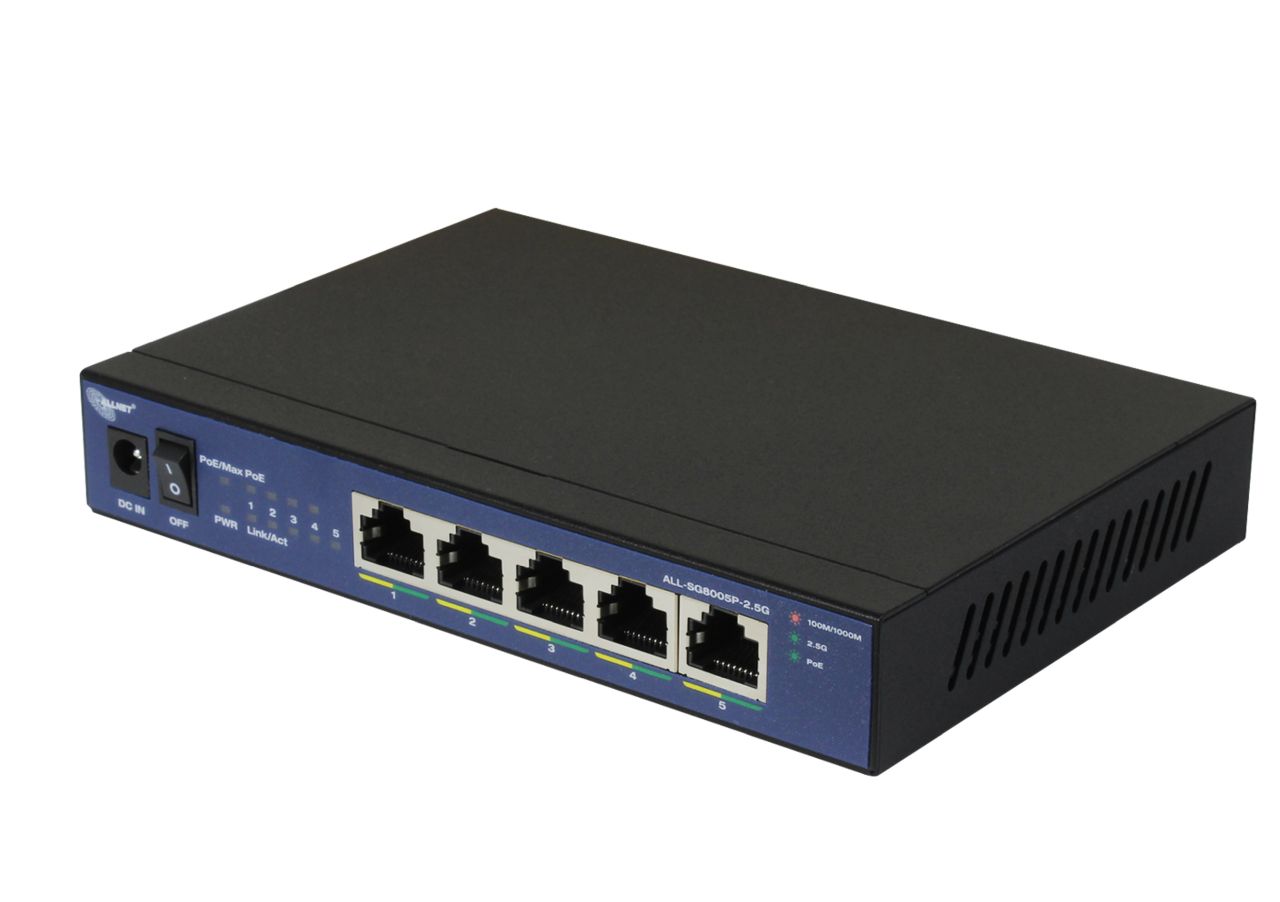

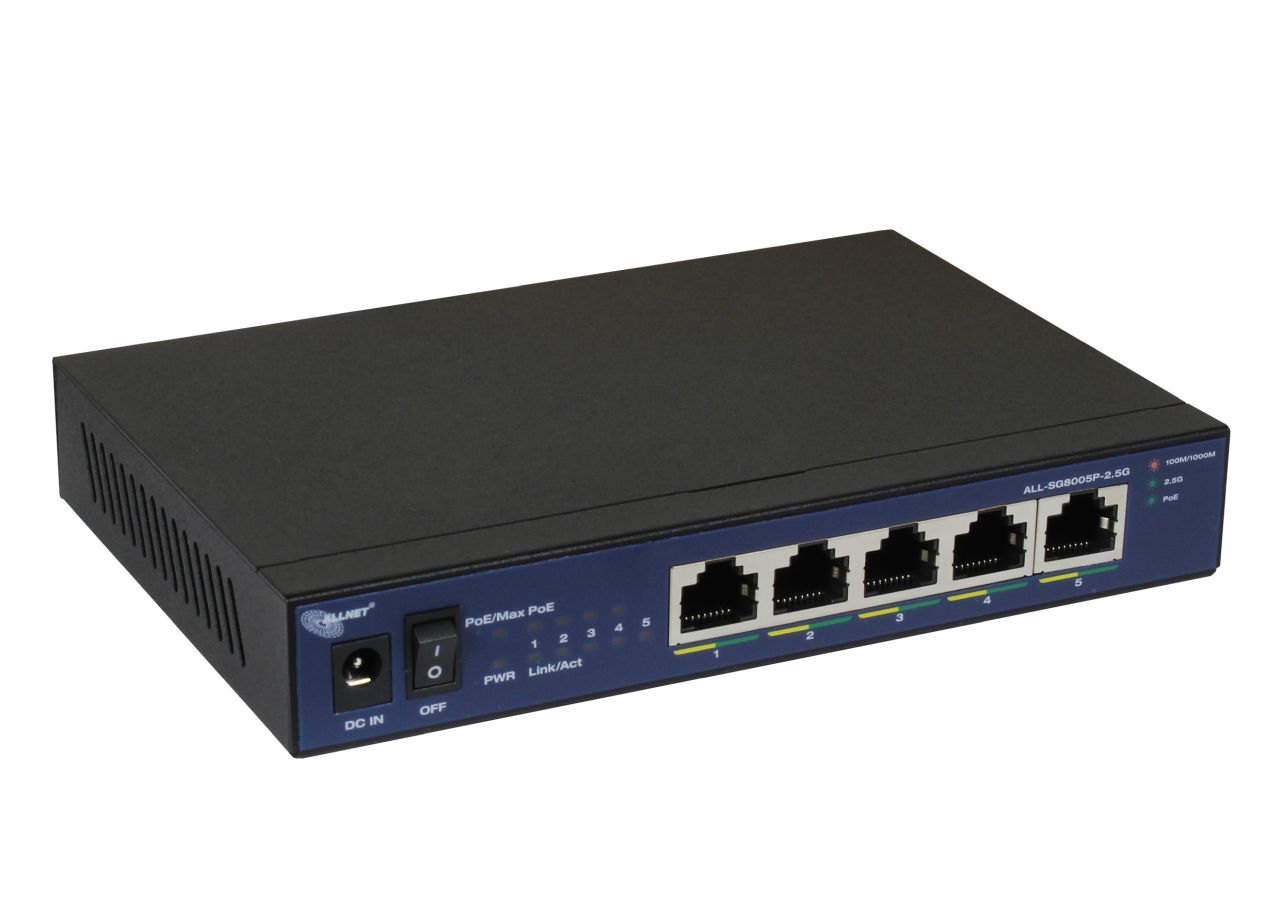

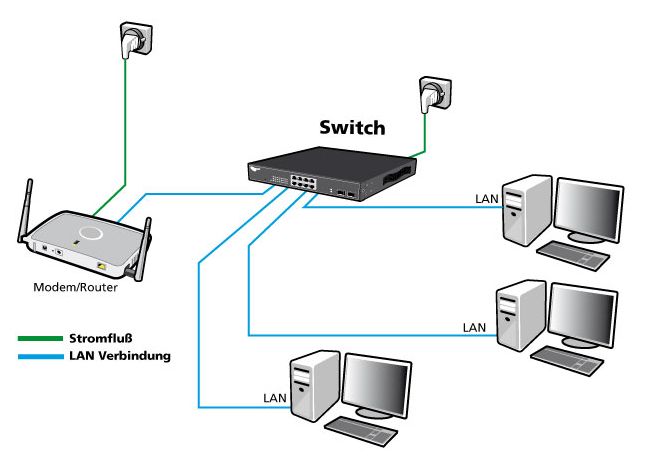

ALL-SG8005P-2.5G"

Key Components

Realtek RTL8371+RTL8221Bx5

IC+ IP804AR PoE PSE Controller

I/O ports

5 x 2.5Gigabit Ethernet Ports, RJ45

PoE ports

Port# 1~ 4

IEEE802.3at, IEEE802.3af

LED Define

Power: Green LED

• Off: power off or fail
• On: power on
• Blinking: system booting up PoE Alert: Green LED
• Off: No over PoE max power budget (50W)
• On: Over PoE max power budget (50W) RJ 45 Port:

LINK/ACT: bio-color LED

• Off: port disconnected or link fail
• Green on: 2.5Mbps connected
• Amber on: 10/100/1000Mbps connected
• Blinking: sending or receiving data

PoE:

• Off: PoE power output off
• Green on: PoE power output on

HW feature

IEEE802.3u 100BASE-TX IEEE802.3ab 1000BASE-T IEEE802.3bz 2.5G BASE-T IEEE802.3az EEE

IEEE802.1x Flow control MAC address Table: 16K Packet buffer size: 12Mbit Jumbo Frame: 12K bytes

Forwarding Rate: 18.6pps (64-byte)

PoE power pin-out

Alternative A (Pin 1,2/3,6)

PoE power budget

Alert: 50W

Budget: 55W

PoE Output power capacity

Maximum output :30W per each port

1. Compliant with IEEE802.3af/at standard, Following IEEE802.3at/at to support PoE or PoE+
2. Automatically discover the connection of PD device and immediately sends power to it
3. Auto disable port if the port current is over 700mA or short happens
4. Priority default setting is lower port NO. has high priority
5. The maximum power used by power devices is defined by the following classification. When Port works in Auto Mode, the output port power limit will be associated with PD classification Value.

6. Follow the standard PSE pin-out standard of Alternative A (MAD-X) which is sending out power over number 1,2,3,6 pins of 8 wires of Ethernet CAT5 UTP cable

Power Input

AC-to-DC external power adapter Input: 100-240V AC

Output: 55V DC/1.3A

Dimension

160 x 110 x 26 mm

FAN Design

Fanless

Temperature

Operating: 0 ~ 40°C

Storage : -40 ~ 70°C

Humidity

Operating: 10% ~ 90% RH (non-condensing)

Storage: 5% ~ 90% RH (non-condensing)
