ALLNET Apollo Wireless AP WIFI6 AX5400 2x2:2; 4x4:4 Indoor 2.5 GbE ALL-WAPC0544AX-5400 A
- Artikel-Nr.: 211736
- Hersteller: ALLNET
- Hersteller Artikel-Nr.: ALL-WAPC0544AX-5400
- EAN Nummer: 4038816126689
- Gelistet seit: 09.08.2022
ALLNET Apollo Wireless AP WIFI6 • AX5400 • 2x2:2; 4x4:4 • Indoor • 2.5 GbE • ALL-WAPC0544AX-5400 • Apollo
Highlights:
- Dual Concurrent 802.11ax-Architektur und Abwärtskompatibilität mit 11ac/a/b/g/n-Clientgeräten
- Unterstützung für WPA3 und WPA2-AES-Authentifizierung
- 5 dBi integrierte 2x2-Antenne
- Unterstützt bis zu 2.400 Mbps im 5GHz Frequenzband und 574 Mbps im 2.4GHz Frequenzband
- Unterstützt 5GHz DFS-Kanäle
- Lokale und Fernverwaltung über FitController Controller ohne Gebühren
- 1 GB 802.3af PoE Port für einfache Platzierung bis zu 328 Fuß von einer Stromquelle entfernt
- Auswahl an AP- und WDS-Modi, um Ihre Verwaltungs- und Bereitstellungsanforderungen zu erfüllen.
ALLNET Apollo Series ALL-WAPC0544AX-5400 ist ein fortschrittlicher WiFi 6 Access Point, der die Möglichkeiten von WiFi für den Einsatz in Umgebungen mit hoher Kapazität erweitert und vertieft. Die funktionsreiche Hardware auf Enterprise-Niveau kann in einem schlanken und flachen Gehäuse angeboten werden, während gleichzeitig eine optimale Wärmeableitung erreicht wird, um effizienter zu arbeiten und weniger Strom für maximale 4x4 räumliche Streams mit 4804 Mbps im 5GHz Frequenzband und 573 Mbps im 2,4GHz Frequenzband zu verbrauchen.

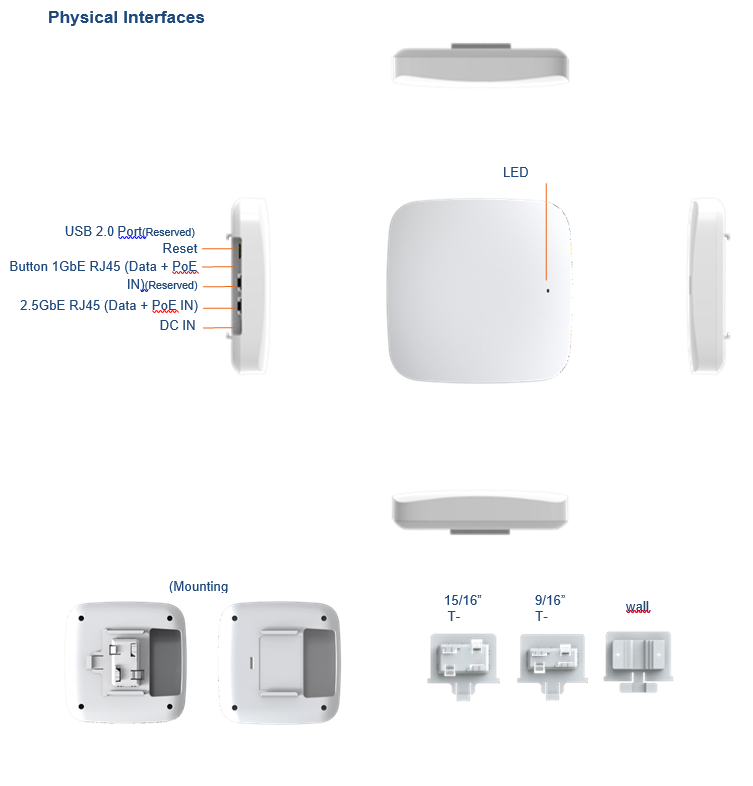

Physical Interfaces:
Technical Details Basics:
| ALL-WAPC0544AX-5400 | |
| Main Chipset | IPQ5018 ARM A53, 1GHz Dual-Core |
| Flash | 8MB SPI NOR (reserved) 128MB NAND |
| RAM | 512MB DDR3 |
| Transmit Power (Combined) | IPQ5018@2.4GHz: 21dBm |
| QCN6024@5GHz: 27dBm | |
| Bluetooth | BLE 5.0 (reserved), IPQ5018 integrated |
| Interface | 1x 10/100/1000/2500Mbps RJ45 Port 1x 10/100/1000Mbps RJ45 Port (reserved) 1x Reset Button 1x DC Barrel Jack 1x USB 2.0 Port (reserved) |
| Operating Temperature | 0 ~ 40°C |
| Dimensions (W x L x H) | 160 x 160 x 30mm |
| Enclosure Material | Plastic (Top Cover) Metal (Bottom Cover) |
Fully Technical Details:
| Fully |
| ||
| Wireless Radio Specification | |||
| AccessPoint Type | Indoor, dual radios concurrent, 5GHz 802.11 ax 4x4 MU-MIMO is backwards compatible with 802.11 ax/ ac/a/n mode, 2.4GHz 802.11 ax 2x2 MU-MIMO is backwards compatible with 802.11 b/g/n/ac | ||
| FrequencyRadio | 2.4GHz: 2400MHz ~ 2495MHz, 5GHz: 5150MHz~5250MHz, 5250MHz~5350MHz, 5470~5725MHz, 5725MHz~5850MHz Support radios andchannels will be varied on theconfiguredregulatory domain. | ||
| Supported Radio Technology | 802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA) 802.11b: Direct-sequence spread-spectrum (DSSS) 802.11ac/a/g/n:OrthogonalFrequencyDivisionMultiple(OFDM) 802.11ax supportsvery highthroughput(VHT)—HE 20/40/80/160 MHz 802.11ac supportsvery highthroughput(VHT)—VHT 20/40/80 MHz 802.11n supports highthroughput(HT) —HT 20/40 MHz 802.11n supportsvery highthroughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packetaggregation: A-MPDU, A-SPDU | ||
| Supported Modulation Type | 802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM | ||
| Transmit Power (Combined) | 2.4GHz: 21dBm; 5GHz: 27dBm Maximum power is limited by regulatory domain | ||
| MU-MIMO | MU-MIMO allowsmultiple spatial streamsto be allocated to different clients simultaneously on both downloadandupload sides. | ||
| TxBeamforming (TxBF) | Increasing signal reliability and transmitting distance. | ||
| Power | |||
| Maximum Power Consumption | 18W | ||
| PowerSource | Standard IEEE802.3at DC IN 12V/2A | ||
| Antenna | |||
| Internal Antenna | 2.4GHz:4dBi 5GHz:5dBi BLE2.4GHz:4.5dBi(reserved) | ||
| Interfaces | |||
| NetworkingInterface | One 10/100/1000/2500 Mbps Ethernet Port One10/100/1000MbpsEthernetPorts(reserved) | ||
| Reset Button | One(1) reset button (Convert Access Point to the Factory default or the Users Default | ||
| USB Port | One(1) USB 2.0 Port (reserved) | ||
| DCIN | One(1) 12VDC IN | ||
| Mounting | |||
| Ceilingor Wall Mounting | Mount Access Point in on the ceiling or wall via included accessories | ||
| Mechanical & Environment | |||
| Dimensions(LxWxH) | 160mmx160mmx30mm | ||
| Operating | Temperature: 0°C~40°CHumidity:0%~90%typical | ||
| Storage | Temperature: -20°C~70°CHumidity:0%~90%typical | ||
| Marks | FCC Subpart15 B Subpart C 15.247 Subpart E 15.407 CE EN 300 328 EN 301 893 EN 50385 EN 55032 EN 55024 | ||
RF Performance Specification Wireless Indoor Access Point
| Channel | Data Rate | Transmit Power (Typical AVG.) | Receive Sensitivity (Per-chain) | ||||
| Tolerance = +/-1.5 dBm | |||||||
| 2.4GHz | 5GHz | 2.4GHz | 5GHz | ||||
| Combine | EIRP | Combine | EIRP | ||||
| 802.11b | 1M | 21 | 25 | - | - | -95 | - |
| 11M | 21 | 25 | - | - | -88 | - | |
| 802.11g/a | 6M | 21 | 25 | 27 | 32 | -91 | -88 |
| 54M | 18 | 22 | 25 | 30 | -75 | -71 | |
| 802.11n HT20 | MCS0 | 21 | 25 | 27 | 32 | -92 | -88 |
| MCS7 | 18 | 22 | 25 | 30 | -74 | -71 | |
| 802.11n HT40 | MCS0 | 21 | 25 | 27 | 32 | -89 | -86 |
| MCS7 | 18 | 22 | 25 | 30 | -71 | -68 | |
| 802.11ac VHT20 | MCS0 | 21 | 25 | 27 | 32 | -92 | -88 |
| MCS8 | 17 | 21 | 24 | 29 | -70 | -66 | |
| 802.11ac VHT40 | MCS0 | 21 | 25 | 27 | 32 | -89 | -86 |
| MCS9 | 17 | 21 | 23 | 28 | -67 | -63 | |
| 802.11ac VHT80 | MCS0 | - | - | 27 | 32 | - | -81 |
| MCS9 | - | - | 23 | 28 | - | -59 | |
| 802.11ac VHT160 | MCS0 | - | - | 27 | 32 | - | -80 |
| MCS11 | - | - | 22 | 27 | - | -53 | |
| 802.11ax HE20 | MCS0 | 21 | 25 | 27 | 32 | -92 | -88 |
| MCS11 | 16 | 20 | 21 | 26 | -63 | -59 | |
| 802.11ax HE40 | MCS0 | 21 | 25 | 27 | 32 | -89 | -86 |
| MCS11 | 16 | 20 | 21 | 26 | -61 | -57 | |
| 802.11ax HE80 | MCS0 | - | - | 27 | 32 | - | -81 |
| MCS11 | - | - | 21 | 26 | - | -52 | |
| 802.11ax HE160 | MCS0 | - | - | 27 | 32 | - | -80 |
| MCS11 | - | - | 21 | 26 | - | -52 | |
