MikroTiK Parabolic Antennas 30dBi 5Ghz Parabolic Dish antenna with precision aligmnent mount

30dBi 5Ghz Parabolic Dish antenna with precision aligmnent mount

mANT30 PA

mANT30 is a professional class 5 GHz 30dBi dish antenna, built to the highest industry standards. Built to seamlessly accomodate our Basebox series products, but can be used for any pole mounted wireless device due to the adequate length of the included FlexGuide cable.

Two antennas are available, with a standard type mount (MTAD-5G-30D3), and with a precision alignment mount (MTAD-5G-30D3-PA). The antennas come packaged with all necessary accessories and cables.

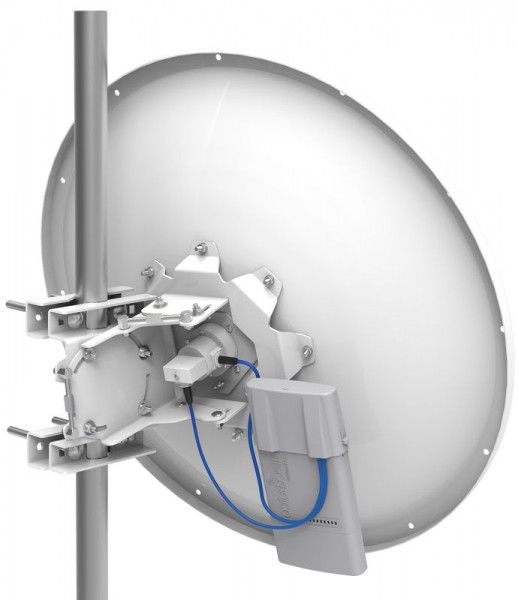

Note: Basebox wireless device pictured for illustrative purposes. It is not included

Product specifications

Details

Product code MTAD-5G-30D3-PA

Antenna gain DBI 30dbi

Frequency Range 4.7-5.875 GHz

Polarization Vertical and Horizontal

Beamwidth 3 deg

VSWR ? 1.4 typ, ? 1.8 max

Port to Port Isolation >40dB min

Front-to-Back Ratio >30 dB

Cross Polarization >40 dB

Power Rating 100W

Impedance 50 ohms

Elevation adjustment range +/- 15 deg

Diameter x Depth 70 x 45cm (27.5 x 17.8in)

Weight 5.7kg (12.6 lbs)

Reflector Aluminum

Outdoor Rating ETSI EN 300 019-2-4

Standards EN 302 326 DN1, DN2, DN3, DN5

Wind Survivability 201kph (125mph)

Wind Load (125 mph) 181.4kg (400 lbs)

Operating Temperature -50°C to 80°C(-49°F to 158°F)

Pole Mount Diameter Range 3 to 10cm (1.2 to 3.9in)

Connector 2x RP-SMA Female (outside thread)

Packaged size 73x73x20cm (29x29x8in)

Packaged weight 8.4 kg (18,5)

Suggested price $129.00
