Ubiquiti FiberPoE, F-POE-G2

Dimensions 196.4 x 93.5 x 32.4 mm
( 7.73 x 3.68 x 1.28")
Weight 288 g
(10.2 oz)
Enclosure White Polycarbonate

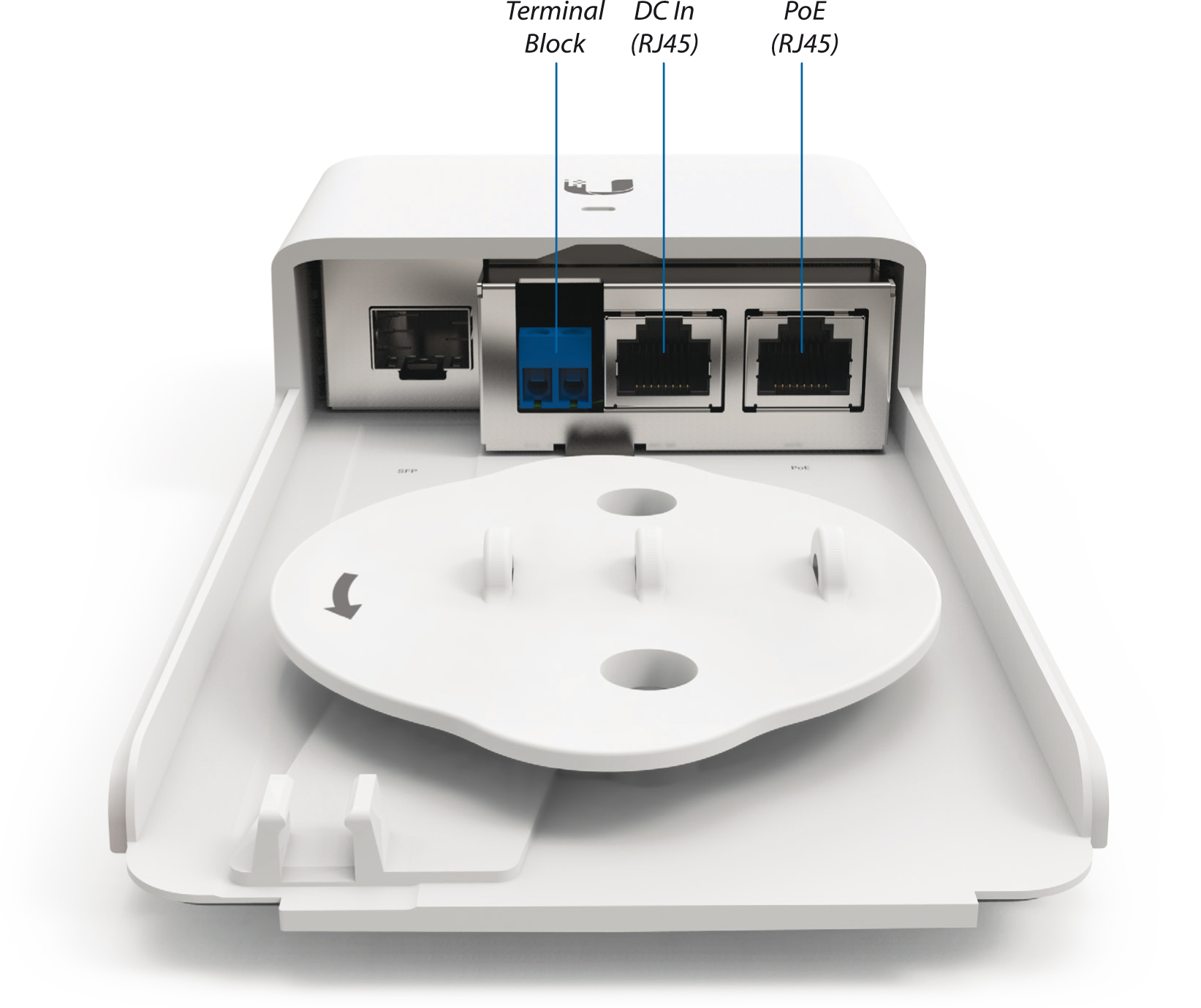

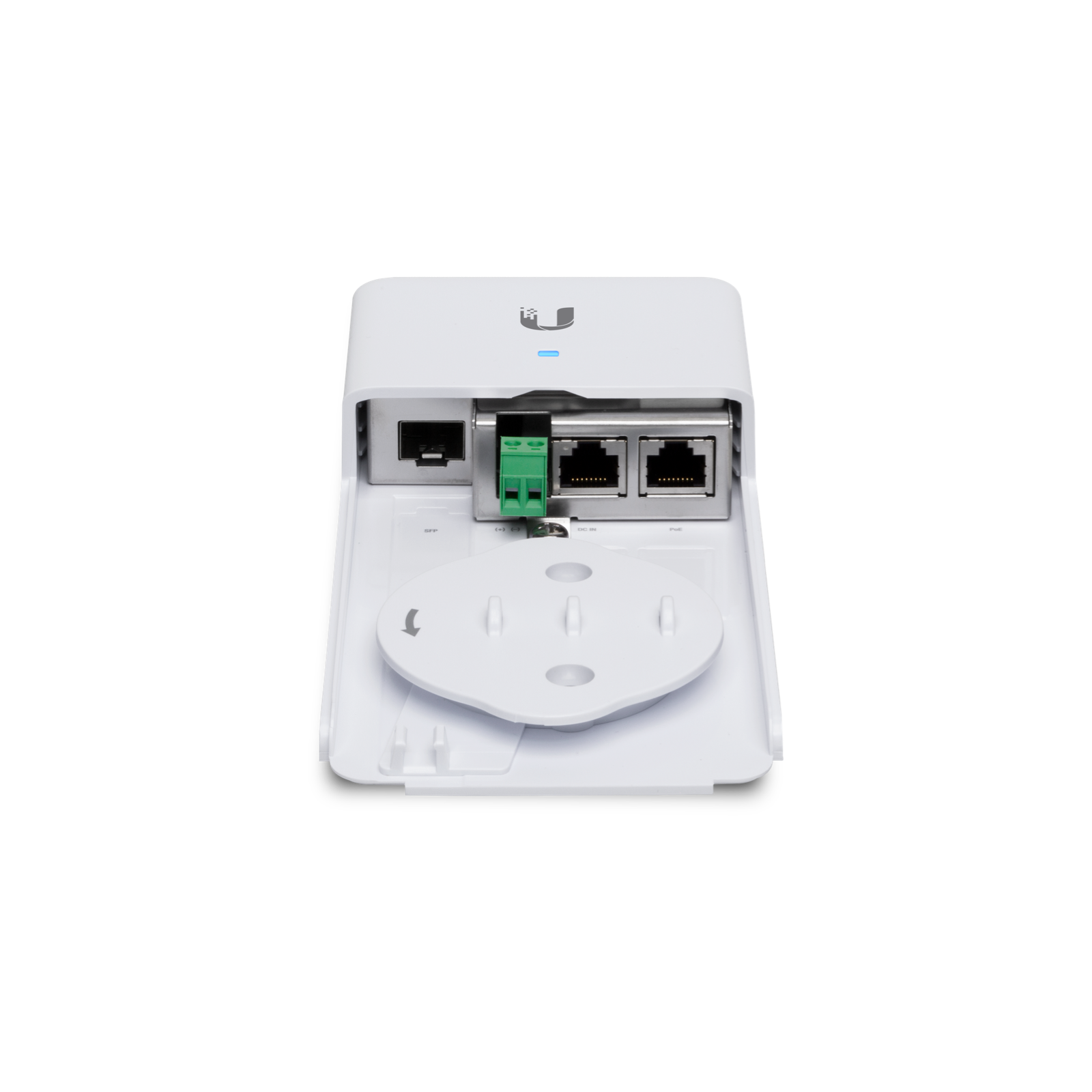

Interface Connections (1) 1 Gbps SFP Port
(1) DC Terminal Block
(1) DC RJ45 Port DC Injection
(1) 1000 Mbps Ethernet PoE Port
Typical Power Consumption 1.5W
Power Method DC Terminal Block, 2-Wire, 24VDC or 50VDC
DC In RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or
4-Pair (24VDC or 50VDC Input) Passthrough
PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC Input), or
4-Pair (24VDC or 50VDC Input) PoE Passthrough
PoE Output PoE RJ45 Port, 2-Pair (4, 5+; 7, 8-) (24VDC), or
4-Pair (24VDC or 50VDC) PoE
DC Output Terminal Block, 2-Wire (24VDC or 50VDC)
Input DC Voltage 16 to 57V
LED White: Power On
Blue: Connected
Blue (Flashing): Activity
Operating Temperature -30 to 60° C
(-22 to 140° F)
Operating Humidity 10 to 95% Noncondensing
ESD/EMP Protection ± 24KV Contact / Air for Ethernet
Certifications CE, FCC, IC
