- Artikel-Nr.: 122066
- Hersteller: Portech
- Hersteller Artikel-Nr.: IS-640
- Gelistet seit: 30.04.2015

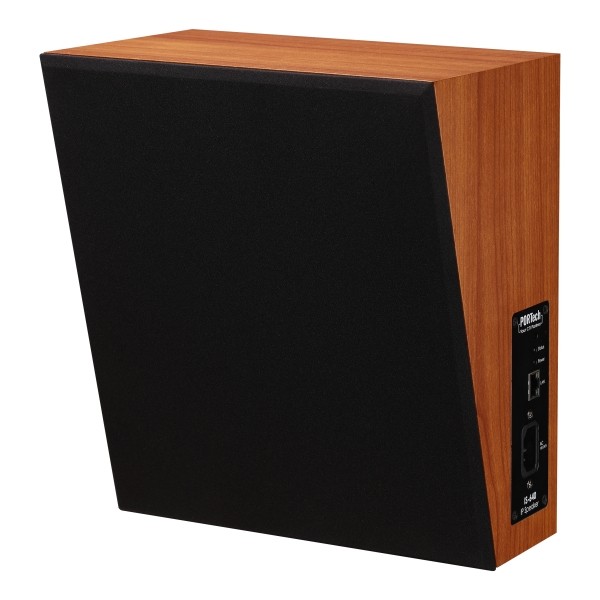

IS-640 IP Speaker provide a user-friendly control and simple voice broadcasting. The product is designed to provide easy use for any office,department store,factory,school to be able to quickly broadcast announcements to their any assigned office or branch or classes
IS-640 can work P to P ,IP to IP and Compatible with IP-PBX,Traditional PBX,Asterisk,Trixbox,SIP server
Option: IP Broadcasting System

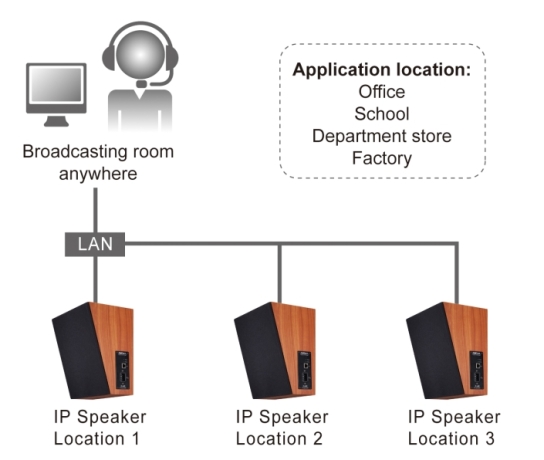

User can broadcast announcements to a group of office or branch or classes
Features:
-
SIP (RFC 3261) compatible
-
Web-based configuration
-
Web-based firmware upgradable
-
High efficiency speaker driver
-
Powerful built-in amplifier:40W
-
Remote control
-
Work with extra IP Speaker Server to make group broadcast
Specifications:
-
Protocols:SIP (RFC2543,RFC3261)
-
Codec:G.711 u-Law,G.711 a-Law,G.729A,G.729A/B
-
LAN connection :RJ-45 connector
-
Ethernet I/F 10/100 Mbps
-
power supply :110V-240V 1A (0.5A)
-
Dimensions 17.5 X 28 X 24.5cm
-
Weight: 3kg
-
Warranty 1 year
Application:
-
System Integrator
-
Large Multinational Corporation
-
Design firm
Framework
?
IP Speaker Specification | ||||||||
| Wood speaker | Horn speaker | Ceiling speaker | Wall speaker | IP Audio Gateway | |||
Model No | IS-640 | IS-640P | IS-650 | IS-660 | IS-670 | IS-381 | IS-382 | IS-3840 |
Speaker | 8 “ | 8 “ | 11*8 “ | 5” | 6.5”+2” | --- | --- | --- |
AMP circuit | V | V | V | V | V | --- | --- | V |
DIM (cm) | 17.5x28x24.5x9 | 17.5x28x24.5x9 | 28x20x28 | 19.8x16.6x11 | 27x15x19.5 | 17X14.5X4 | 17X14.5X4 | 17X14.5X4 |
Weight (g) | 3000 | 2640 | 2020 | 900 | 2050 | 265 | 270 | 275 |
Impedance | 8Ω | --- | ||||||
Rated Power | 40W | 40W | 30W | 6W | 30W |
|
| 40W |
Power supply | 110V-240V 1A | PoE(30W) | 110V-240V 12V/1A | 110V-240V 24V/4A | ||||
Water Protection | --- | --- | IP66 | --- | IP55,IP-X3 | --- | ||
Protocol | SIP(RFC2543,RFC3261) | |||||||
Codec | G.711 u-Law,G.711 a-Law | |||||||
LAN connection | RJ45 10/100 Mbps | |||||||
Warranty | 1 Year |
